NICE Swing Gate Operators

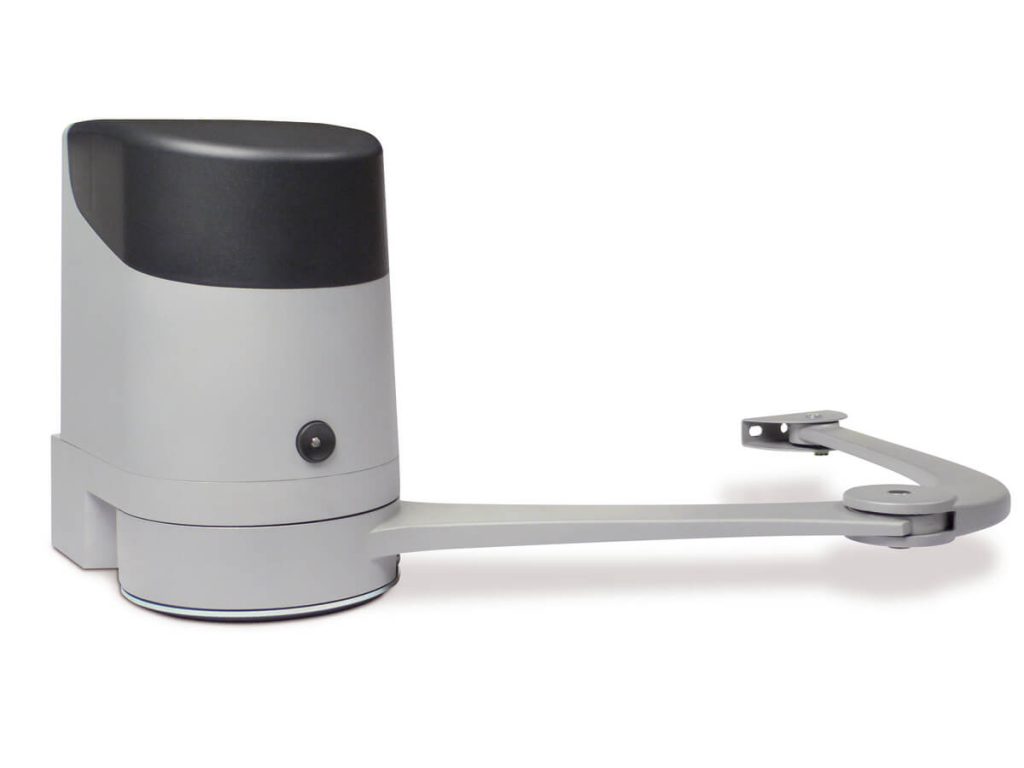

POPP / HOPP
Italian Made
The POPP/HOPP series is designed for light residential swing gates, offering smooth movement and simple installation. Its compact articulated-arm system makes it ideal for homes with smaller gate wings or wide gate posts.
Max gate: 250 kg
Speed: 1.68 rpm (articulated arm output)
Work cycles/hour: 35
Power: 230 Vac (motor 24 Vdc)

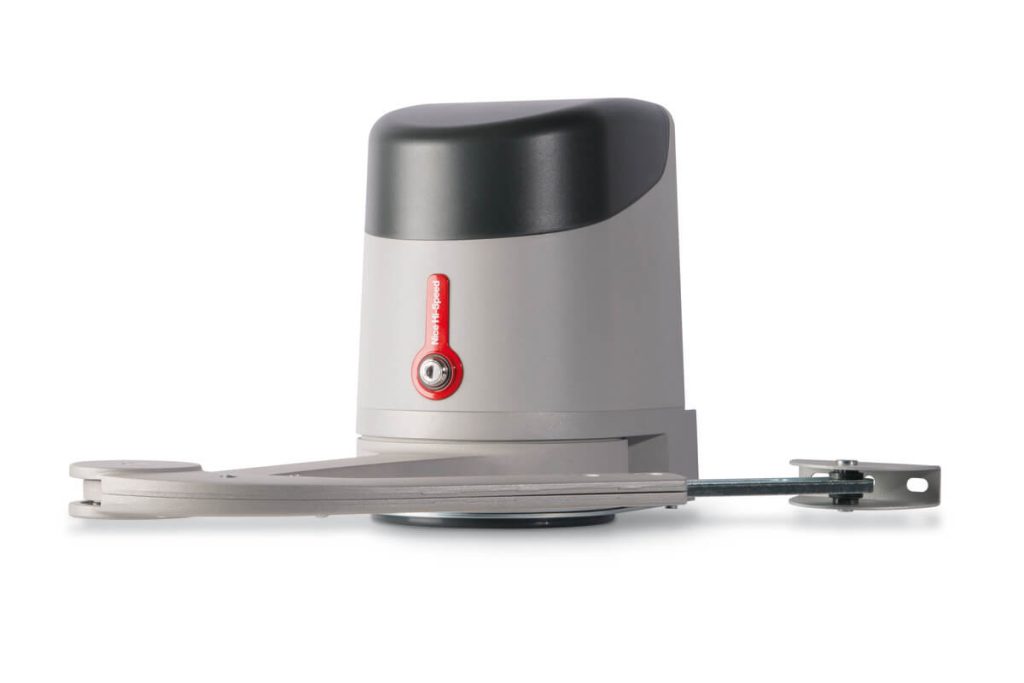

HYKE HS
Italian Made
The HYKE HS is a high-speed articulated operator built for intensive residential or light-commercial use. Its rapid opening and robust swing geometry make it suitable for properties needing fast access and reliable operation in tighter hinge setups.
Max gate: 270 kg
Speed: 2 rpm (articulated arm output)
Work cycles/hour: 40
Power: 230 Vac (motor 24 Vdc)

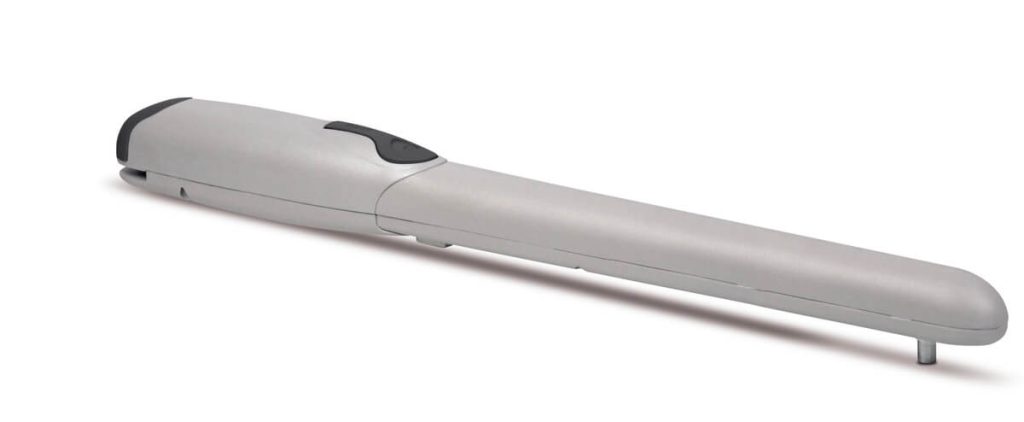

Wingo 3524
Italian Made
The Wingo 3524 is a linear 24-volt operator suited to typical residential swing gates up to medium size. It provides dependable, quiet performance with enhanced safety features for everyday home use.
Max gate: 200 kg
Speed: 0.016 m/s
Work cycles/hour: 30
Power: 230 Vac (motor 24 Vdc)

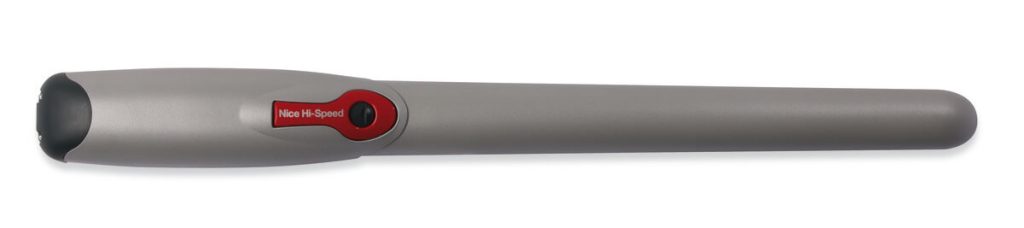

Wingo 3524HS
Italian Made
The Wingo 3524HS offers the same capacity as the standard 3524 but with significantly faster operation for quicker gate cycles. It is ideal for residential properties requiring reduced wait times or faster driveway access.
Max gate: 200 kg
Speed: 0.04 m/s
Work cycles/hour: 30
Power: 230 Vac (motor 24 Vdc)

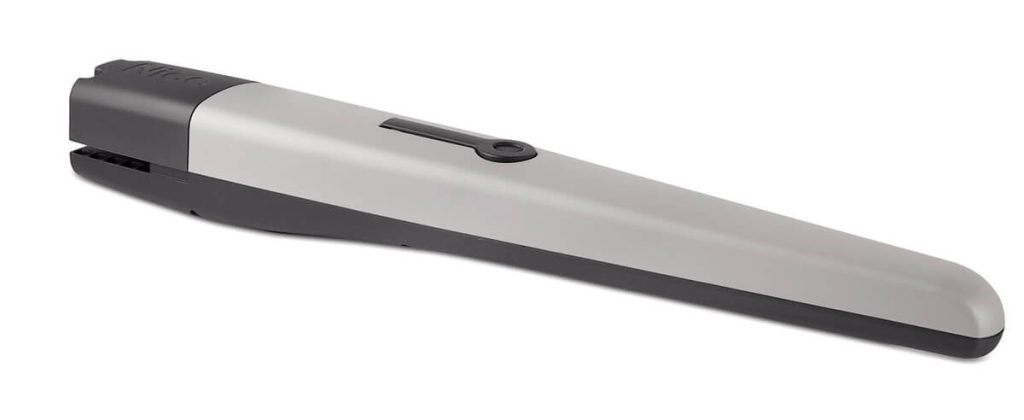

Toona 4
Italian Made
The Toona 4 is a compact linear operator suitable for small to medium residential gate wings. Its streamlined design and reliable movement make it a practical choice for standard domestic installations.
Max gate: 500 kg
Speed: 0.016 m/s
Work cycles/hour: 95
Power: 230 Vac (motor 24 Vdc)

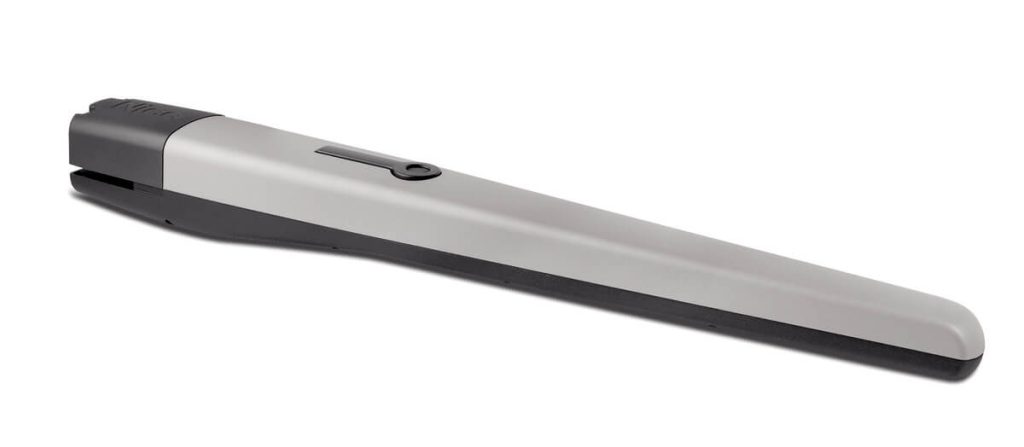

Toona 5
Italian Made
The Toona 5 is a versatile operator for larger residential gates or low-duty commercial entrances. It provides strong linear push force and consistent performance for heavier domestic applications.
Max gate: 600 kg
Speed: 0.016 m/s
Work cycles/hour: 95
Power: 230 Vac (motor 24 Vdc)

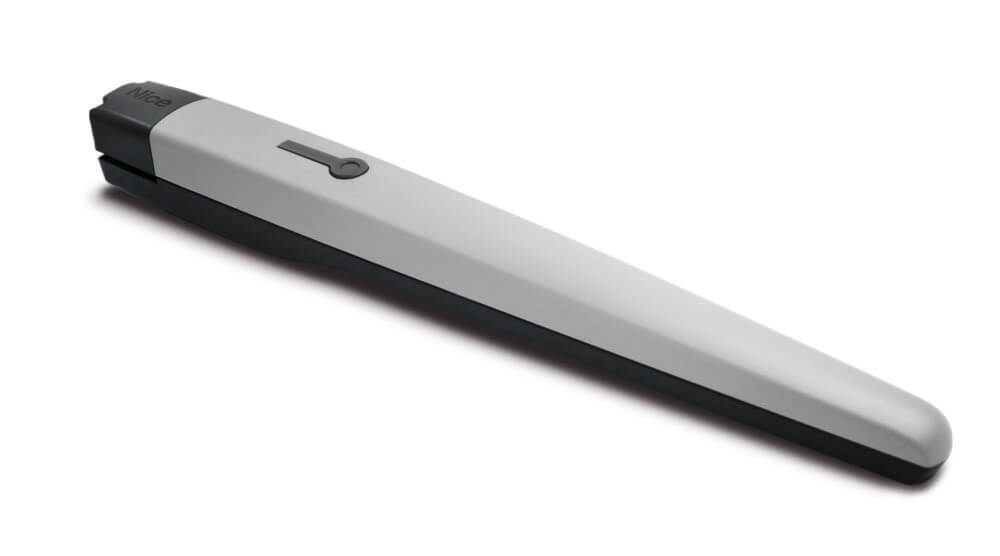

Toona 7
Italian Made
The Toona 7 is a heavy-duty linear operator built for large residential or commercial swing gates. Its reinforced mechanics and high torque output make it suitable for wide gates and more demanding environments.
Max gate: 750 kg
Speed: 0.013 m/s
Work cycles/hour: 41
Power: 230 Vac (motor 24 Vdc)

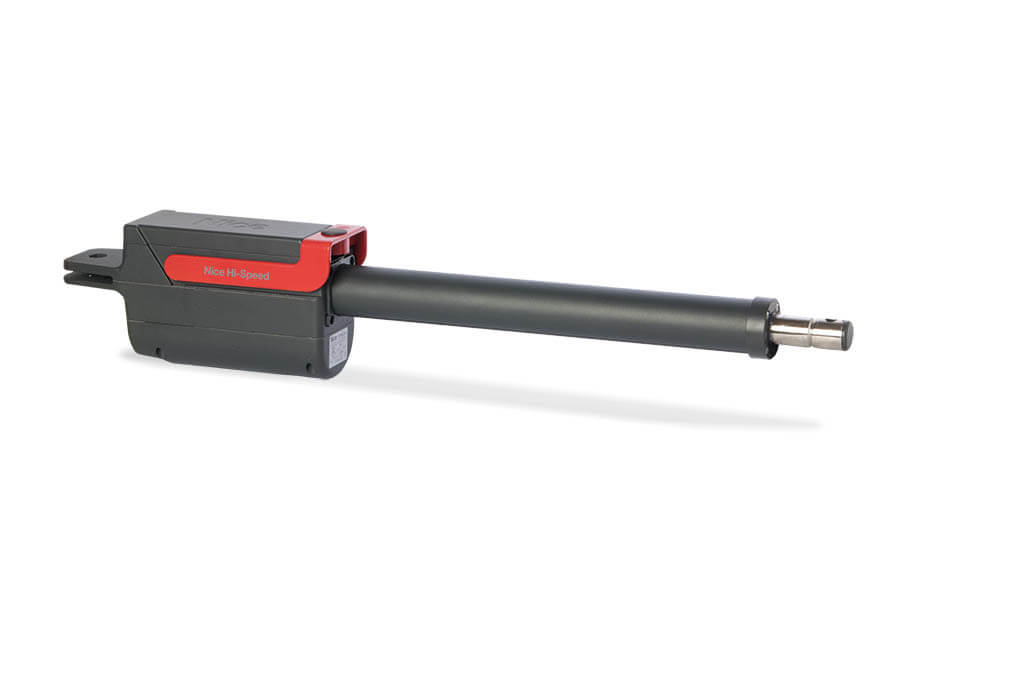

Titan 3
Italian Made
The Titan 3 is a compact linear swing gate operator designed for light-to-medium residential gates. Its smooth linear motion and reliable 24-volt performance make it well suited to standard home installations with shorter gate wings.
Max gate: 450 kg
Speed: 0.032 m/s
Work cycles/hour: continuous
Power: 230 Vac (motor 24 Vdc)

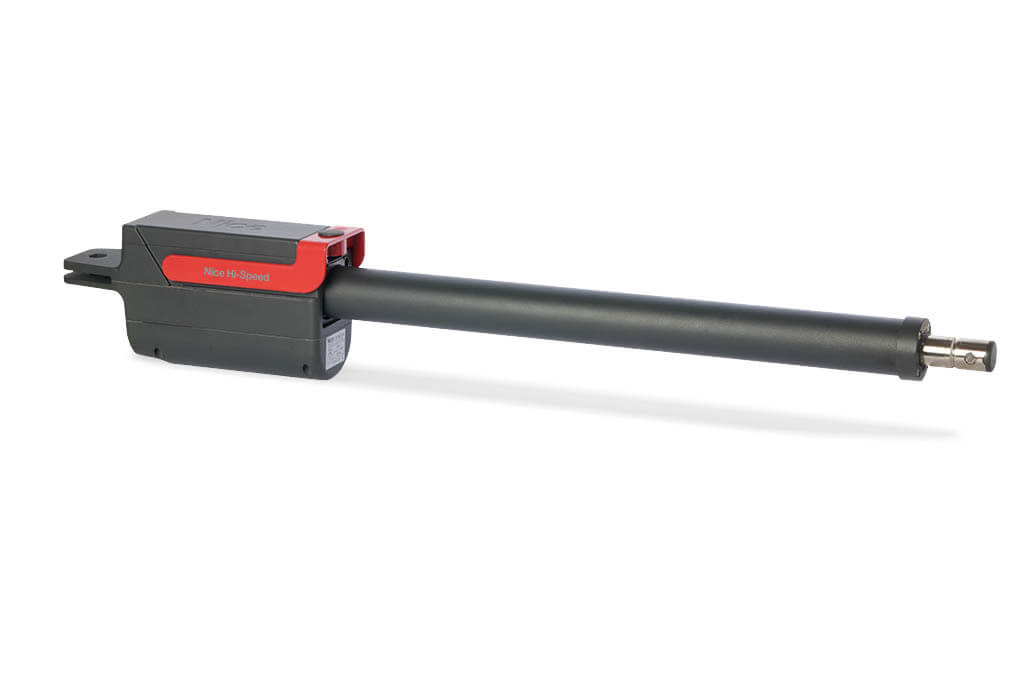

Titan 6
Italian Made
The Titan 6 is a heavy-duty linear operator built for large residential or commercial swing gates. Its increased stroke length and stronger torque output provide dependable movement for long or heavier gate leaves.
Max gate: 450 kg
Speed: 0.027 m/s
Work cycles/hour: continuous
Power: 230 Vac (motor 24 Vdc)
ROGER Swing Gate Operators

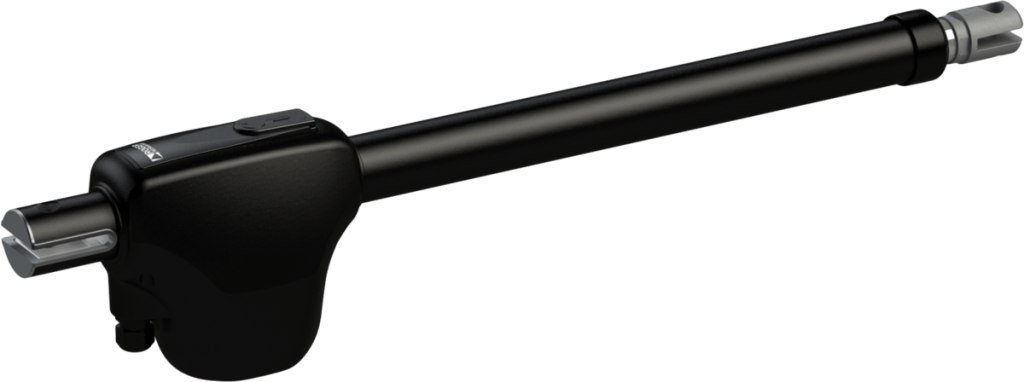

Monos
Italian Made
The Monos is a 400 kg/4 m-leaf residential swing gate operator built around a 24 V brushless motor and 100% duty cycle capability. It’s well suited to homes needing reliable, low-voltage automation with strong torque and everyday use.
Max gate: 400 kg (or up to 4 m leaf)
Speed: 19-35 s to 90° (depends on geometry)
Work cycles/hour: Intensive / 100% duty cycle (continuous use)
Power: 230 V AC (motor 24 V AC brushless)

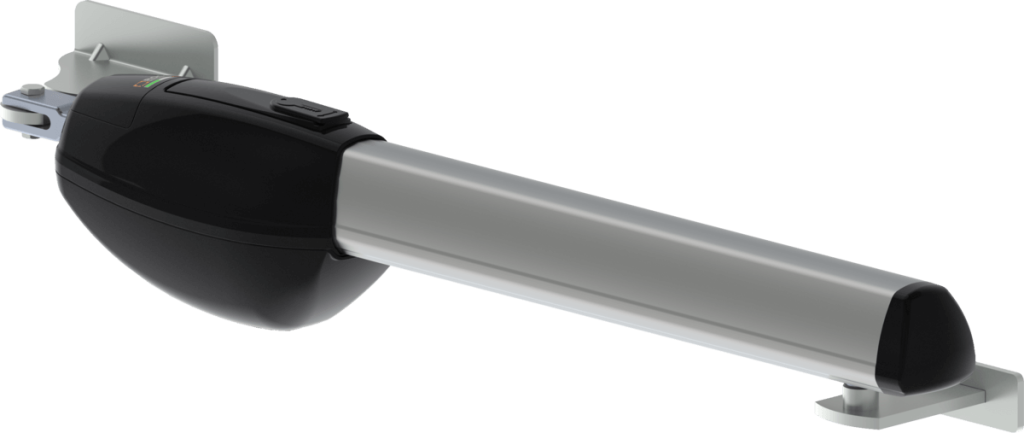

Presto
Italian Made
The Presto series offers a 200–400 kg class swing operator that combines Italian brushless motor design with compact form, making it ideal for residential gates that require moderate to high performance. It’s particularly suited to standard domestic double-leaves or heavier single leaves where speed and durability matter.
Max gate: 300 kg / 2.5 m per leaf (for BE20-200)
Max gate: 400 kg / 4 m per leaf (for BE20-400)
Speed: 10-15 s to 90° (BE20-200)
Speed: 17-26 s to 90° (BE20-400)
Work cycles/hour: Intensive use / 1000 cycles per day-capable
Power: 230 V AC (motor 36 V brushless)

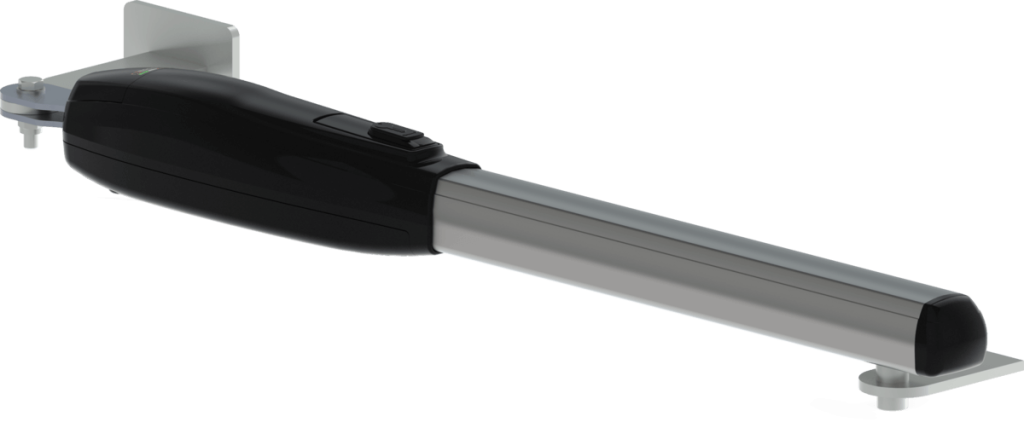

Smarty
Italian Made
The Smarty series (Smarty 4 / Smarty 7) are high-performance brushless swing gate operators built for heavier residential or light commercial gates (up to 7 m leaf). Their 36 V motor and intensive-use design make them suitable for demanding driveway installations requiring large leaf size and high duty.
Max gate: up to 400 kg / 4 m leaf (Smarty 4)
Max gate: up to 700 kg / 7 m leaf (Smarty 7)
Speed: 35-50 s to 90° (Smarty 7)
Motor Power Supply: 36 V (brushless)
Work cycles/hour: “Intensive use” / up to ~1000 opening/closings per day in some versions
Power: 230 V AC line supply

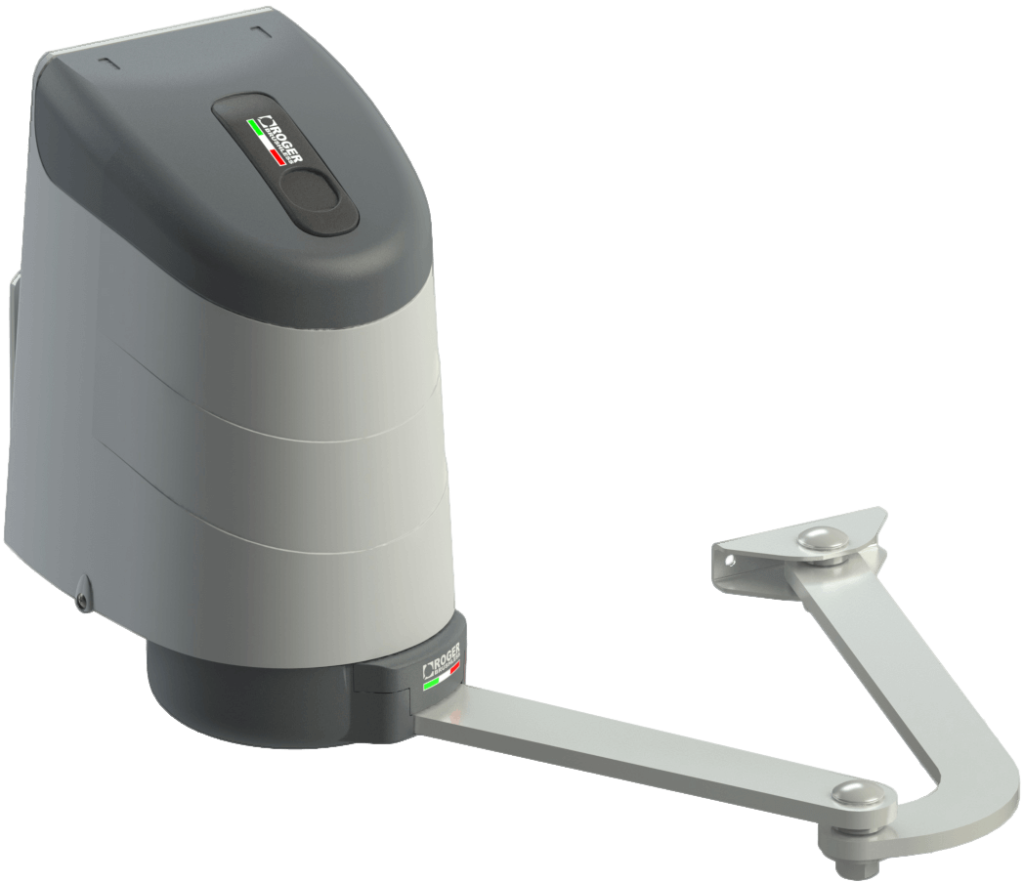

Ayron
Italian Made
The Ayron is a specialised brushless motor designed for swing gates up to ~250 kg or 2.5 m per leaf, featuring a compact design and quick opening speed—ideal for installations on large posts or tight hinge-geometries. It suits residential sites where pillar spacing or mounting constraints demand a more flexible automation solution.
Max gate: 250 kg / 2.5 m per leaf
Speed: 10-18 s to 90° (for AY/250)
Work cycles/hour: “Super intensive use” / 800 cycles per day quoted
Power: 230 V AC line supply, motor 24 V brushless (150 W)
ATA Swing Gate Automation

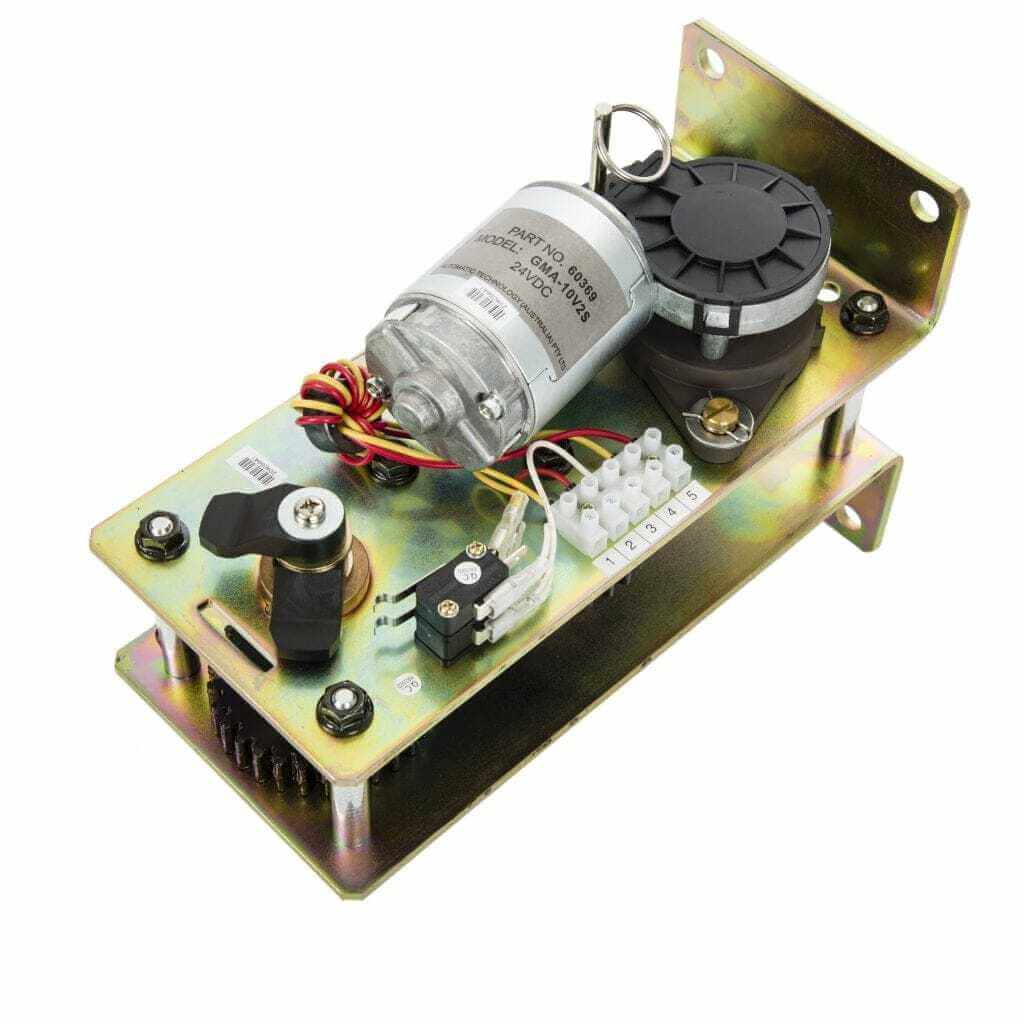

ATA Elite SGO1V4
The ATA Elite swing-gate automation is a durable residential automation solution built for domestic gates, offering smooth operation via a DC motor with articulated arms and weather-resistant construction. With its dependable design and compatibility with upgrade accessories (e.g., smartphone control, solar ready), it is ideal for homes requiring reliable, everyday access control.
Max gate: Up to 300 kg
Speed: ~8°/second travel speed (approx 90° swing in ~11-12 s)
Work cycles/hour: Continuous domestic use; rated for heavy daily cycles
Power: 230-240 Vac (motor 24 V DC permanent magnet)
BFT Swing Gate Automation
BFT Giuno Ultra (Hydraulic Swing Gate Operator)
Italian Made
The Giuno Ultra is a heavy-duty 24 V hydraulic swing-gate opener built for intensive residential, multi-resident or light-commercial use, capable of automating large leaves whilst offering advanced safety and precision control. Its robust hydraulics, D-Track torque-management and IP55 protection rating make it well-suited for demanding environments and high-cycle installations.
Max gate: Up to 800 kg (or up to 5 m leaf width on A50 model)
Speed: ~14 s (A20 model) / ~20 s (A50 model) for 90° manoeuvre
Work cycles/hour: Rated for “very-intensive use / intensive duty cycle” (continuous use)
Power: 230 V AC line supply, Motor 24 V DC hydraulic drive
GDS Swing Gate Operators
GDS 4/6 (including 4/6-LV)
Australian Made
The GDS 4/6 series are industrial-grade swing gate operators built for heavy usage and applications where reliability under frequent cycling matters. Their 100% duty-cycle design, cast-iron gearboxes and inverter-driven ramp control make them suitable for high-security, high-traffic sites such as commercial compounds and institutional facilities.
Max gate: ~4 m leaf (GDS 4) / ~6 m leaf (GDS 6)
Speed: variable (inverter driven, 8-10 seconds for 90° on GDS 6)
Work cycles/hour: 100% duty cycle (continuous use)
Power: 240 V AC supply (24 V version for “LV” model)

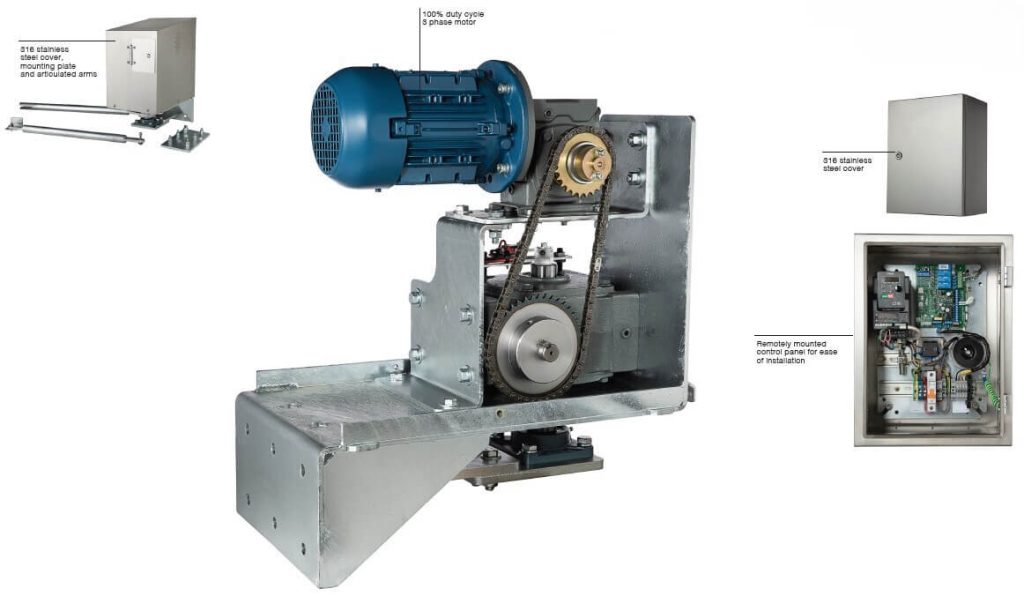

GDS 7
Australian Made
The GDS 7 is engineered for large-leaf swing gates (approx. 7 m each leaf) in demanding commercial or industrial settings, offering full duty-cycle operation and heavy-duty mechanical components. It’s ideal when you need robust performance and high reliability for wide-gate installations.
Max gate: ~7 m leaf approx
Speed: ~8-10 seconds for a 90° opening (inverter driven)
Work cycles/hour: 100% duty cycle
Power: 240 V AC supply (typically 370W motor)

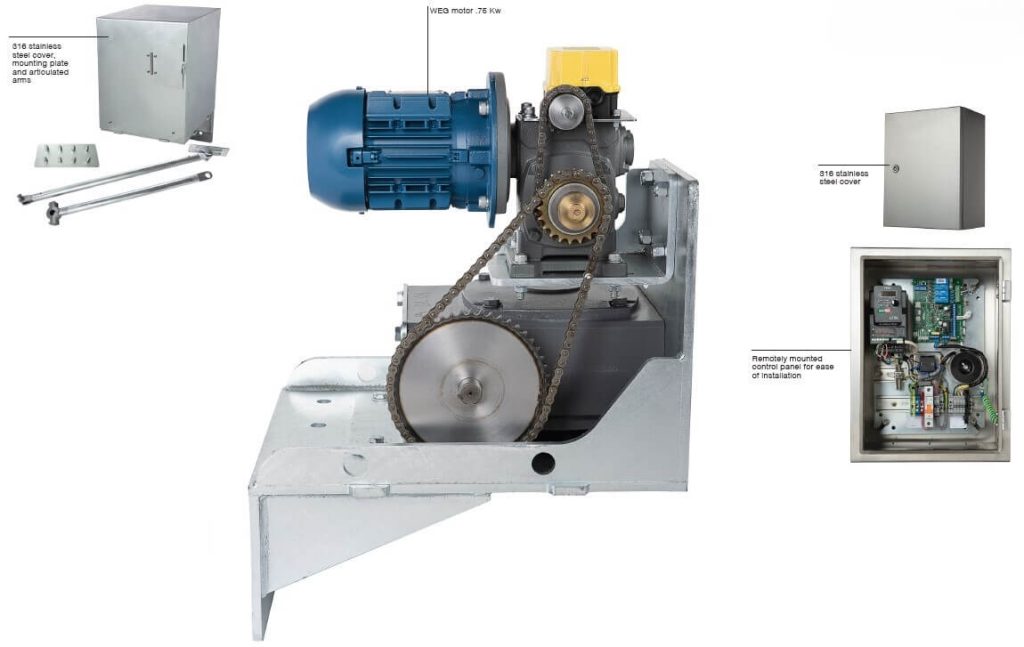

GDS 8
Australian Made
The GDS 8 is the heavy-industrial choice in the GDS swing-gate range, designed for oversized gates (approx. 8 m leaf) and extremely high-duty applications such as factory driveways or secure facilities where gates need to handle constant use. Its robust build and inverter-based control make it well-suited to very heavy gate leaves under frequent operation.
Max gate: ~8 m leaf approx
Speed: ~12-15 seconds for a 90° opening (inverter driven)
Work cycles/hour: 100% duty cycle
Power: 240 V AC supply (motor power 750 W for GDS 8)
